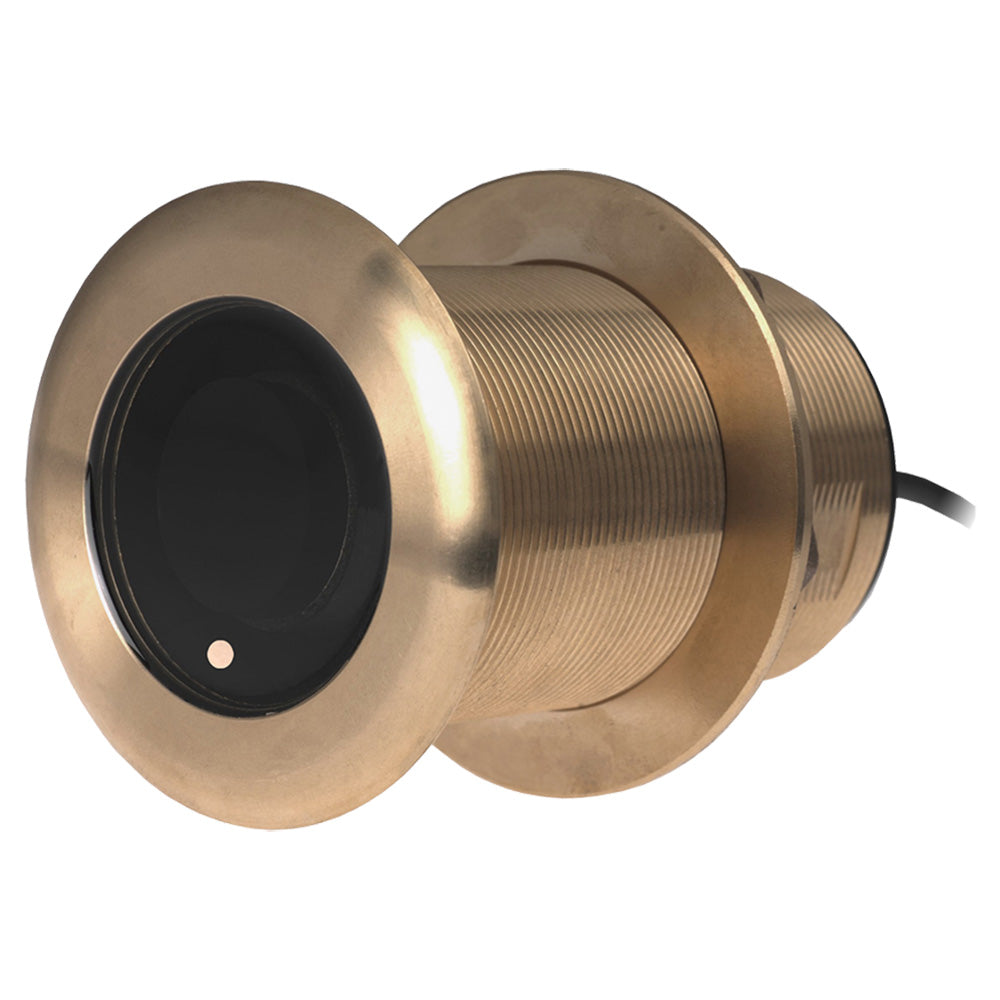

Airmar B60 20° Bronze Thru-Hull Transducer

The Airmar B60 20° Bronze Thru-Hull Transducer offers precise depth and temperature readings tailored for leisure, yachting, and fishing enthusiasts. This 600 W, dual-frequency transducer features Airmar’s innovative Tilted Element™, ensuring maximum echo returns for accurate performance even at varying hull deadrise angles.

Key Features:

• Superior Depth Performance: Operates at dual frequencies (50/200 kHz), achieving depths of up to 366 m (1200') with a 45° beamwidth.
• Tilted Element Design: The fixed 20° angle enhances installation flush with the hull, optimizing signal direction for better accuracy.
• Durable Bronze Housing: Low-profile design extends only 5 mm (3/16") outside the hull, making it suitable for fiberglass or wood hulls without compromising boat performance.

Ideal for center-console or trailered boats, the Airmar B60 is backed by a commitment to quality and satisfaction, guaranteeing reliable operation in various marine environments. Experience superior sonar readings and enhance your boating adventures today!

B60 20° Bronze Thru-Hull Mix & Match Cable Needed

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

• Depth and fast-response water temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16") outside the hull
• No effect on your boat’s running performance
• Bronze housing for fiberglass or wood hull
• Also available in a stainless steel housing (SS60) for use with all hull materials

Specifications:

• Power Rating: 600 W
• Max Deadrise Angle: 24°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26')
• Hole Size: 60 mm (2-3/8")
• Usable Shaft Length: 68.5 mm (2.70")
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 45°/12°
• Max Deadrise: Up to 24°
• Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Weight: 1.4 kg (3 lbs)
