Airmar B175HW Bronze 12 Degree Thru Hull 1kW Garmin 8Pin

Elevate your sonar performance with the Airmar B175HW Bronze 12° Thru-Hull transducer, engineered for Garmin compatibility. Built in bronze for durability and performance, this 1kW transducer delivers crisp, detailed readings with a focused 12-degree beam.

Designed for high-frequency CHIRP-ready operation, the B175HW supports Garmin systems via an 8-pin connector, enabling seamless integration and reliable data transmission.

• Bronze thru-hull construction for strength, reliability, and long life at sea.
• 1kW power output for deep, clear sonar at range.
• 12° beam (high-frequency) for precise target separation and bottom detail.
• CHIRP-ready compatibility offering enhanced resolution and target discrimination.
• Garmin 8-pin connector ensures secure, plug-and-play integration with Garmin MFDs.
• Wide operating frequency range with high-band operation from 150–250 kHz, enabling versatile search patterns.

Upgrade your vessel's fish-finding capability with this rugged, reliable Airmar transducer, designed to deliver consistent performance in a range of conditions and depths. Perfect for boats using Garmin sonar systems that demand both depth and detail from a single, durable transducer.

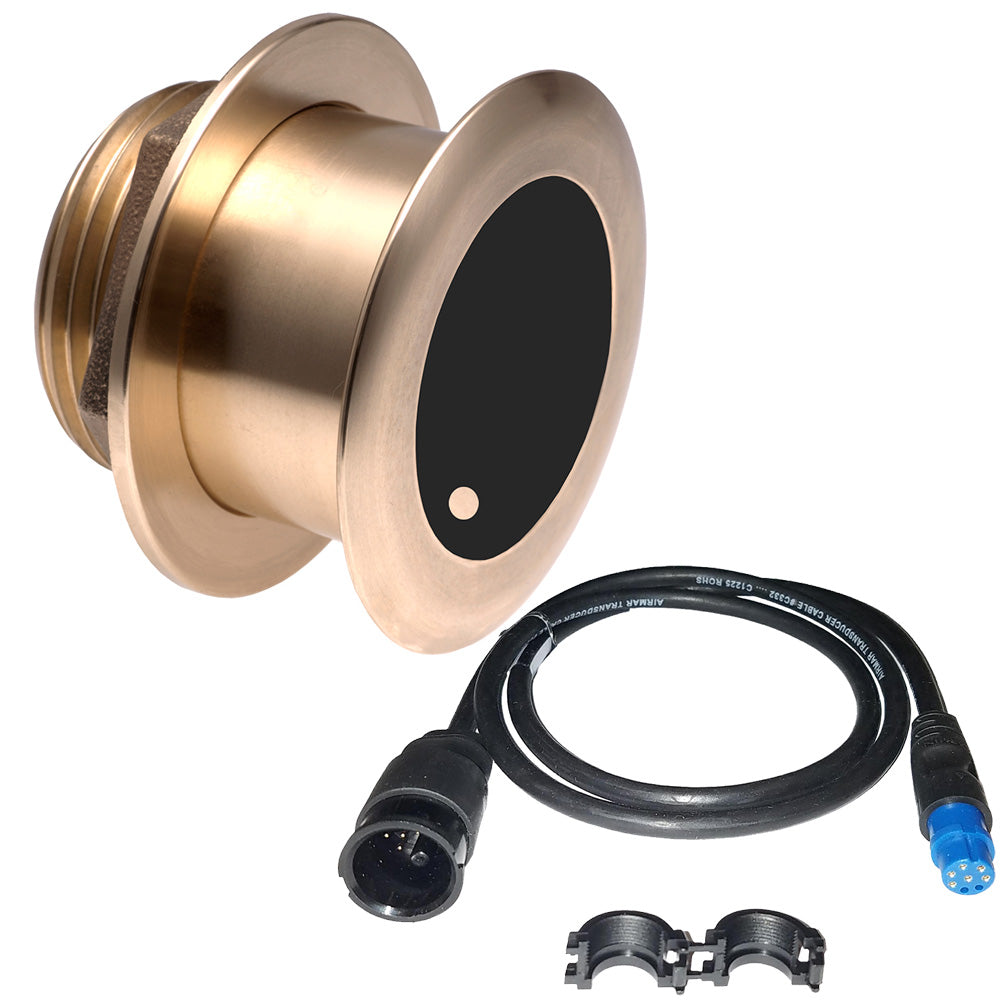

B175HW Bronze 12 Degree Thru-Hull 1kW for Garmin with 8-Pin Connector

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready B175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

Tilted Element™ transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features:

• Garmin 8-Pin Mix & Match Cable for Chirp Transducers
• Depth and fast-response water-temperature sensing
• 1 kW of power
• High frequency: 150 to 250 kHz
• Constant 25° beamwidth
• Maximum depth of 152 m (500')
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz, plus everything else in the bandwidth
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in fiberglass or wood hull
• Also available in a stainless steel housing (SS175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts
• Patented Xducer ID® technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4")
• Usable Shaft Length: 71 mm (2.80")
• Mounting Style: Tilted Element Thru-Hull
• Acoustic Window: Urethane
• Common Use: Fishing
• High Frequency: 150-250 kHz
• High-Wide Beamwidth: 25°
• Max Deadrise: Up to 24°
• Max Depth: 150 m (500')
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)
